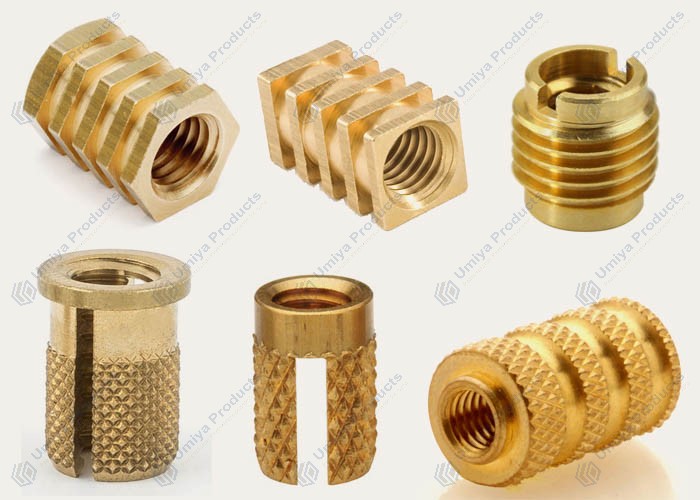

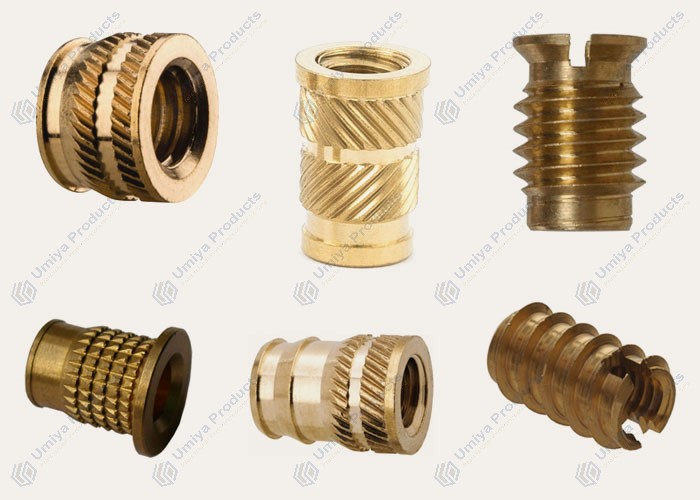

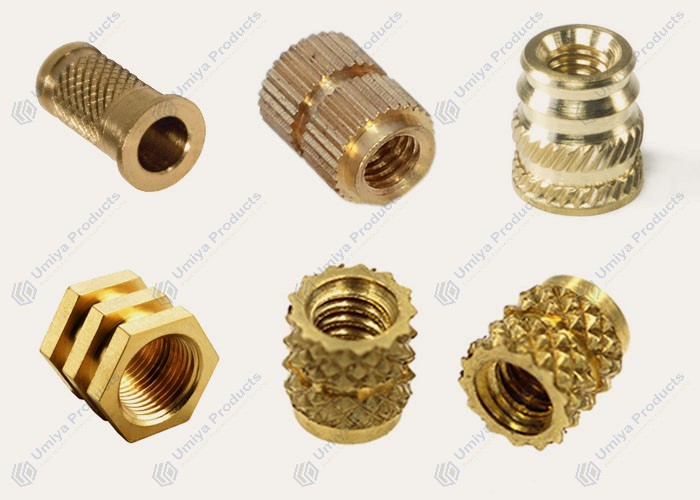

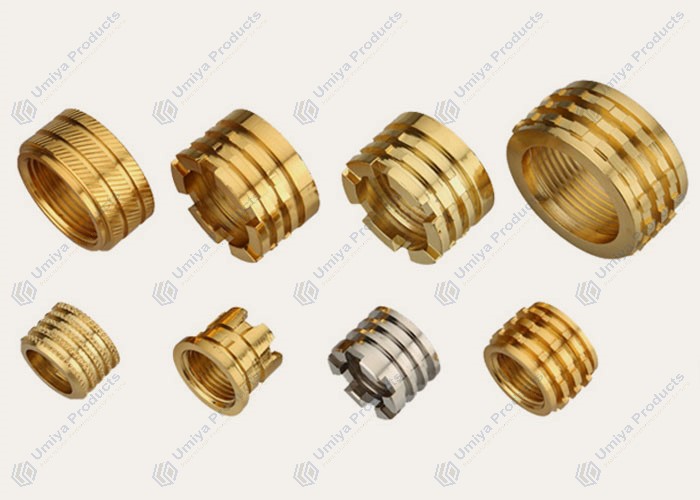

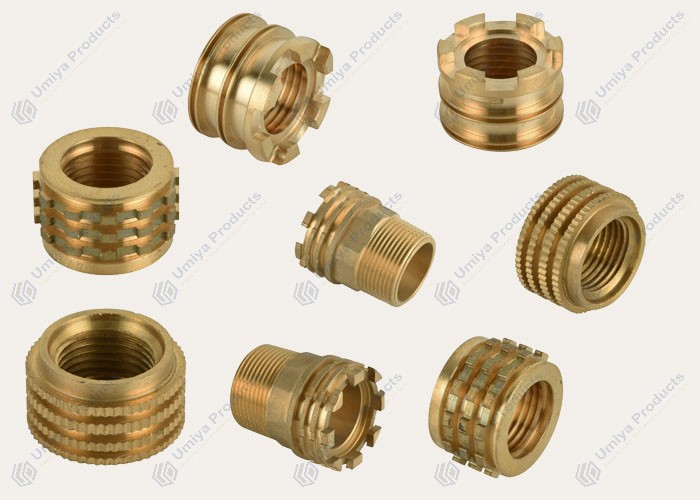

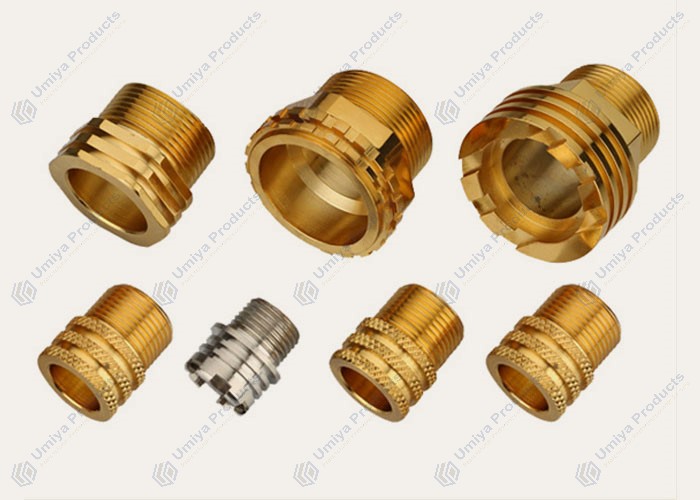

Umiya Products is a leading manufacturer of Brass threaded inserts for plastics Industries, Communication equipment’s, Automotive Industries, Electrical & Wiring Device Cases etc. We offer a full line of brass inserts for all methods of installation, including ultrasonic, heat, thermal, press-in and mold-in. Although we produce various brass inserts as per custom design & specification, we have standard series of Threaded Inserts such as Straight Hole, Blind (Closed bottom), Collar Inserts, Ultrasonic, Press in, Tri Slotted Inserts etc.
| Products Range : |
● Brass Knurled Inserts
● Brass Threaded Inserts ● Brass Inserts for Plastics ● Moulded-in Inserts ● Heat bit range of Brass Inserts ● Press-in Inserts with and without collars ● Brass Inserts for Wood and Clipboard ● Ultrasonic range of Brass Inserts ● CPVC Inserts ● UPVC Inserts ● Unheeded Screw-in Inserts
● Multi Headed Inserts
● PPR Inserts ● Multi Unheeded Inserts ● Multi Micro Inserts ● Headed Screw-in Inserts ● Self-Threading Inserts ● Mould-in Inserts ● Ultra Inserts ● NS Ultra Inserts ● Studded Ultra Inserts ● Press-in Inserts
● Studded Press-in Inserts
● Vane Expansion Inserts ● Self-Lock Expansion Inserts ● Knurled Expansion Inserts ● Headed Hex Drive Inserts ● Unheeded Hex-Drive Inserts ● Slot Drive Inserts ● Brass Knock-in Inserts ● Barbed Expansion Inserts ● Spreading Inserts ● Spreading Dowel Inserts |
||
| Application : | Instrumentation
Telecommunications Other Plastic Cases Assembly |
||
| Special Features : | In such cases the length of insert is very important for proper closing of moulding die. We maintain length of such inserts within tolerance of -0.05mm.
Thread Size Starts from M2 to M50, BA, BSW, BSPT, and BSF & American Threads like UNC, UNF, UNEF, and NPT are also available as per custom requirements. Straight, Diamond, opposite diagonal etc. are the knurling options available to give solid gripping to Molding applications. Inserts with collar series provides Options to use Flange to make Electric Contact Opposing Diagonal Knurls provide excellent Torque Resistance. Vertical Undercuts in Tri Series Provides superior Tensile Strength Blind thread or closed bottom Inserts prevents plastic from entering the bottom of the insert. |
||
| Installation : | Ultrasonic Installation
Thermal/Heat Installation Mold-In Installation Press-In Installation Threaded In Installation |
||
| Knurling Available : | Diamond
Straight Unidirectional Both blind and through inserts are available with no minimum Quantity |
||
| Material : | High Grade Free Cutting Brass
IS 319 Brass Free Cutting Free Cutting Brass as per BS 249 type (i) Any special brass material compositions as per customer’s requirement |
||
| Threads : | ISO metric, MM, PG, BSW, BSP, BSB, BSF, BA, NPT, NPTF, UNC, UNF, UNEF etc. Any threads as per customer's design | ||
| Length / Size : | Begins from M2 or equivalent threads and up to any size as per custom design or requirement | ||
| Finish And Coating : | Brass Natural, Electro Tinned, Nickel, Chrome or any special finish/plating as per customer specifications | ||
| Any kind of Brass Inserts can be developed and supplied exactly as per customer specifications. | |||
